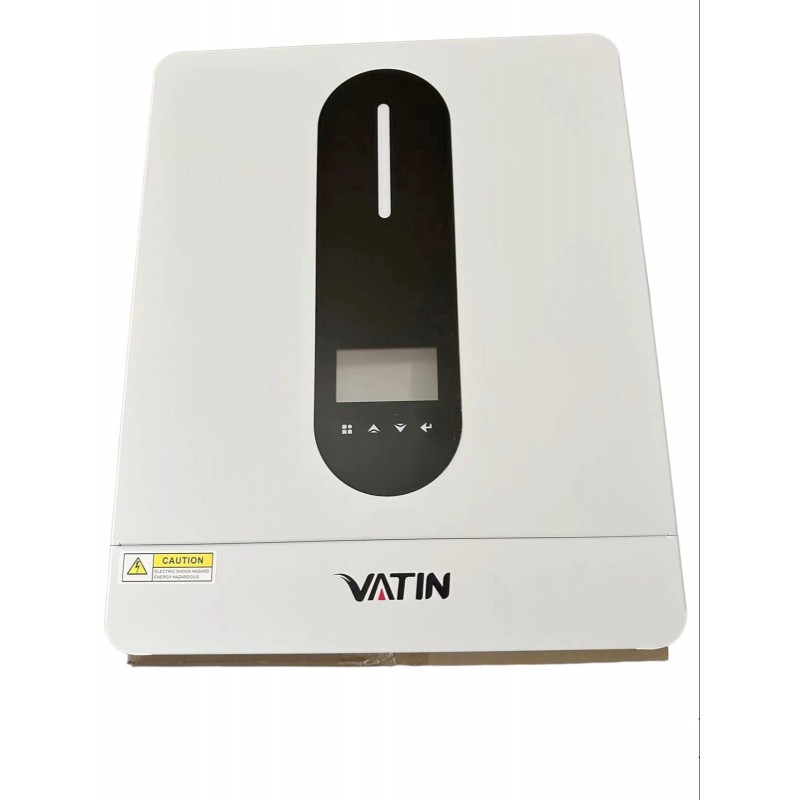

MPPT SOLAR INVERTER ΥΒΡΙΔΙΚΟ SK-2582

        PV INPUT

• MONIMAL OPERATING VOLTAGE 240Vdc

• VMAX PV 500Vdc

• PV INPUT VOLTAGE RANGE 90-500Vdc

• IMAX PV 27A

• FULL LOAD MPPT RANGE 240-450Vdc

• RATED POWER 6500W

• MAXIMUM SOLAR CHARGING CURRENT 120A

        GRID/AC OUTPUTNCY

• NOMIMAL OUTPUT VOLTAGE 220/230/240Vac

• FEED-IN Gnd VOLTAGE RANGE 195-253Vac

• FEED-IN Gnd FREQUENCY RANGE 49-51+-1Hz

• NOMIMAL OUTPUT CURRENT 27.0A

• POWER FACTOR RANGE >0.99

• MAXIMUM CONVERSION EFFICIENCY(DC/AC)97%

• NOMIMAL OPERATING FREQUENCY 50/60Hz

        TWO LOAD OUTPUT POWER

• FULL LOAD 6200W

• MAXIMUM SECOND LOAD 2066W

• MAIN LOAD CUT OFF VOLTAGE 44Vdc/ RETURN VOLTAGE 52Vdc

        BATTERY

• VOLTAGE RANGE 0-63Vdc

• MAXIMUM CURRENT 125A
